Pneumatic Equipment (Thiết bị khí nén Taiyo)

SV2 Series

Giá: Liên hệ

As compared with SH3 and SHA series, its cost perfomance is high.
The durability has been improved for slipping by adopting a thrust washer with abrasion-proof surface treated,low friction and low abrasion.
For mounting body,there are 3styles (lower shank,lower mounting screw and side mounting screw).Especially,the lower mounting screw is conformed to the rod end screw dia.(KK dimension)of

Thông tin chi tiết

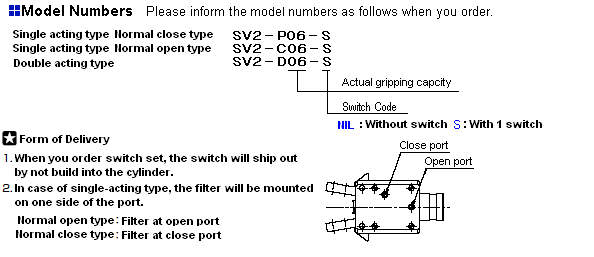

Specifications For the details, please click the code number below.
 Double acting type
Structure Double acting type
Code SV2-D02 SV2-D06 SV2-D12 SV2-D20
Theoretical Gripping Capacity 18.6N 48.1N 92.2N 191.2N
Theoretical Openning Capacity 24.5N 63.7N 123.6N 228.5N
Working fluid Air
Lubrication Unnecessary(But possible)
Port size M5X0.8
Operating pressure range 0.1∼0.6MPa
Proof test pressure 0.9MPa
Max.operating frequency 40C.P.M.
Temperature range -10∼+60Celsius degree(Do not use when frozen)
Tolerance for thread JIS 6H
Reoommended lubricant JIS K2213-1(Additive turbine oil ISO VG32) of equivalent
Weight 70g(95g) 130g(155g) 230g(255g) 380g(405g

 Single-acting Normal Close Type
Structure Double acting type
Code SV2-C02 SV2-C06 SV2-C12 SV2-C20
Theoretical Openning Capacity 19.6N 55.9N 113.8N 215.7N
Working fluid Air
Lubrication Unnecessary(But possible)
Port size M5X0.8
Operating pressure range 0.1∼0.6MPa
Proof test pressure 0.9MPa
Max.operating frequency 40C.P.M.
Temperature range -10∼+60Celsius degree(Do not use when frozen)
Tolerance for thread JIS 6H
Reoommended lubricant JIS K2213-1(Additive turbine oil ISO VG32) of equivalent
Weight 70g(95g) 130g(155g) 230g(255g) 380g(405g

 Single-acting Normal Open Type
Structure Double acting type
Code SV2-P02 SV2-P06 SV2-P12 SV2-P20
Theoretical Gripping Capacity 14.7N 41.2N 82.4N 179.5N
Working fluid Air
Lubrication Unnecessary(But possible)
Port size M5X0.8
Max.operating frequency 0.1∼0.6MPa
Operating pressure range 0.9MPa
Max.operating frequency 40C.P.M.
Temperature range -10∼+60Celsius degree(Do not use when frozen)
Tolerance for thread JIS 6H
Reoommended lubricant JIS K2213-1(Additive turbine oil ISO VG32) of equivalent
Weight 70g(95g) 130g(155g) 230g(255g) 380g(405g
* Acutual gripping capacity is the value at tip of finger with supply pressure of 0.5Mpa
* Weignt available for holding,conveyance with actual gripper is about 10%of the theoretical gripping,opening capacity.
* Switch set is availadle with switch mounted only on the fundamental type.



>
