Pneumatic Equipment (Thiết bị khí nén Taiyo)

7W-1L Series

Giá: Liên hệ

Twin-rod type provides superior non-rotation accuracy and track position accuracy.
Double-piston structure with small space provides twice the output without requiring much installation space.
Possible to add switched to all models.
Could adjusting stroke by fixing a stop bolt.
Stroke adjusting range : ±2.5mm
Extensive models are prepared.

Thông tin chi tiết
Product Lineup Click the icon as follows, to check the details.
Bearing Action Style Model Bore Size mm
20 25 32
Slide bearing Rod Side with lock
Standard·Switch set 7W-1L1N10-10 7W-1L1N10-10 7W-1L1N10-10
Head Side with lock
Standard·Switch set 7W-1L2N10-10 7W-1L2N10-10 7W-1L2N10-10
Note) Please click the Series Name when you need to review the details of each series.

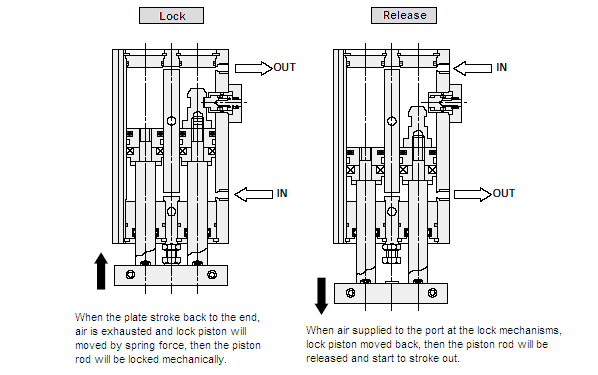

Principle of Operation
