Detecting Equipment (Thiết bị phát hiện rò gỉ Taiyo)

EFS3 Series

Giá: Liên hệ

Correspond to DE-marking.
Monitoring flow rate change and monitoring minimum and maximum set flow.
Digital figure display and also LED(Green, Yellow, Red) display.
Magnetic, and iron proximity type sensing systems are available.
Flexible installation.
Include metal piping adapters as standard equipment.
Low flow type is available.

Thông tin chi tiết

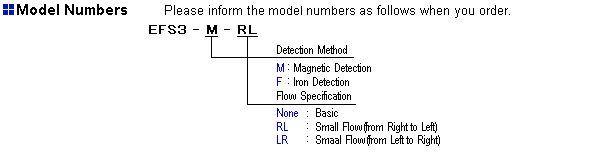

Specification Click the Model number as follows, to check the details.
Flow Rate Specification Low flow type Midium flow type(Standard)
Detection Method Magnetic Proximity Iron Proximity Magnetic Proximity Iron Proximity
Model Number EFS3-M-RL
EFS3-M-LR
EFS3-F-RL
EFS3-F-LR
EFS3-M EFS3-F
Body material Polyacetal
Fluid Used Water
Port Size Rc3/8
Operating Pressure Range 0 to 1.0MPa
Proof Pressure 1.5MPa
Ambient Temperature 0 to +60 Celsius Degree(But do not use when frozen)
Fluid Temperature 0 to +60 Celsius Degree(But do not use when frozen)
Flow Rate Range 0.5 to 3/min 2.5 to 25/min
Read Accuracy 5%FS
Repeatability 2%
Alarm Signal Response Time 500ms or under
Installationb Direction Free
Flow Direction One-way Bi-directional
Weight about 320g about 300g



Power Supply Specification
Power supply Voltage DC24V10%
Power Consumption 1W or under



Output Specification
Frequency Output Photocoupler
DC30V Load current 4mAor under
Alarm Signal Output Photocoupler
Max. allowable power DC30V
Load current 10mA
Alarm Cintact LED (Green) When flow rate is more than the upper limit, a LED (Green) lamp lights up and an alarm rings.
LED (Yellow) When flow rate is between the upper and lower limit, a LED (Yellow) lamp lights up.
LED (Red) When flow rate is less than the lower limit, a LED (Red) lamp lights up and an alarm rings.

>
