Specifications Click the icon as follows, to check the details.

Series	Material of Pump Body	Max Output	Pump Caliber		Air Supply Joint Caliber	The Solid of Material Scope	Weight	Option
			Inhalation	Exhalation
TD-08	Aluminum alloy	13/min	Rc1/4	Rc1/4	Rc1/4	1mm	1.8kg
	Stainless steel						3.8kg
TD-15	Aluminum alloy	35/min	Rc1/2	Rc1/2	Rc1/4	2mm	4.1kg
	Stainless steel						7.1kg
TD-20	Aluminum alloy	54/min	Rc3/4	Rc3/4	Rc1/4	2mm	5.5kg
	Stainless steel						11.5kg
TD-25	Aluminum alloy	128/min	G1	G1	Rc1/4	3mm	8.4kg
	Stainless steel						15.3kg
TD-40	Aluminum alloy	341/min	G11/2	G11/2	Rc1/2	6mm	19.9kg
	Stainless steel						33.1kg
	Cast iron						34.5kg

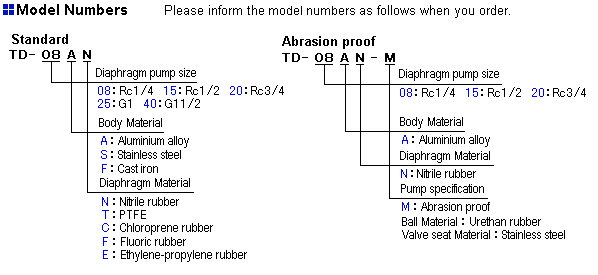

Note)   Max exhalation above is the max output volume of clear water when usage air compress is 0.7 MPa, and elevation height is 0.   Diaphragm is made by rubber.   Common Items Operating Pressure 0.2 to 0.7MPa Highest Usage Viscosity 300mPa/s Max Inhalation Elevation Height 6m (in case of clear water) Ambient Temperature 0 to +60 Celsius Degree (Do not use in unfrozen condition) Lubricating Oil JIS K2213-1 (Natural oil ISO VG32) Note)The material of diaphragm is chloroprene rubber or ethylene propylene rubber, please consult to us for details.   Product Lineup Click the icon ad follows, to check the details. Series Diaphragm Pump Caliber Material of Pump Body Diaphragm Material Type Option TD-08 Rc1/8 Aluminum Alloy Nitrile Rubber TD-08AN TD-08AN-M(hardwearing) PTFE TD-08AT Chloroprene Rubber TD-08AC Fluorin Rubber TD-08AF Ethylene Propylene Rubber TD-06AE Stainless Steel Nitrile Rubber TD-08SN TD-08SN-M(hardwearing) PTFE TD-08ST Chloroprene Rubber TD-08SC Fluorin Rubber TD-08SF Ethylene Propylene Rubber TD-08SE TD-15 Rc1/2 Aluminum Alloy Nitrile Rubber TD-15AN TD-15AN-M(hardwearing) PTFE TD-15AT Chloroprene Rubber TD-15AC Fluorin Rubber TD-15AF Ethylene Propylene Rubber TD-15AE Stainless Steel Nitrile Rubber TD-15SN TD-15SN-M(hardwearing) PTFE TD-15ST Chloroprene Rubber TD-15SC Fluorin Rubber TD-15SF Ethylene Propylene Rubber TD-15SE TD-20 Rc3/4 Aluminum Alloy Nitrile Rubber TD-20AN TD-20AN-M(hardwearing) PTFE TD-20AT Chloroprene Rubber TD-20AC Fluorin Rubber TD-20AF Ethylene Propylene Rubber TD-20AE Stainless Ateel Nitrile Rubber TD-20SN TD-20SN-M(hardwearing) PTFE TD-20ST Chloroprene Rubber TD-20SC Fluorin Rubber TD-20SF Ethylene Propylene Rubber TD-20SE TD-25 G1 Aluminum Alloy Nitrile Rubber TD-25AN PTFE TD-25AT Fluorin Rubber TD-25AF Stainless Steel PTFE TD-25ST TD-40 G11/2 Aluminum Alloy Nitrile Rubber TD-40AN PTFE TD-40AT Stainless Steel PTFE TD-40ST Cast Iron PTFE TD-40FT
