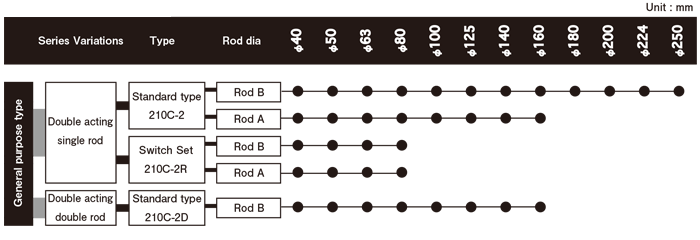

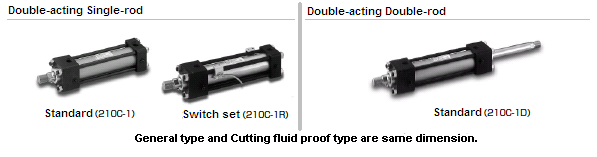

- Nominal pressure
- Pressure given to a cylinder for convenience of naming. It is not always the same as the working pressure (rated pressure) that guarantees performance under the specified conditions.
- Maximum allowable pressure
- The maximum allowable pressure generated in a cylinder (surge pressure, etc.).
- Proof test pressure
- Test pressure against which a cylinder can withstand without unreliable performance at the return to nominal pressure.
- Minimum operating pressure
- The minimum pressure that a cylinder placed horizontally without a load can work.
- Notes)
-
- The hydraulic pressure generated in a cylinder due to the inertia of load must be lower than the maximum allowable pressure.

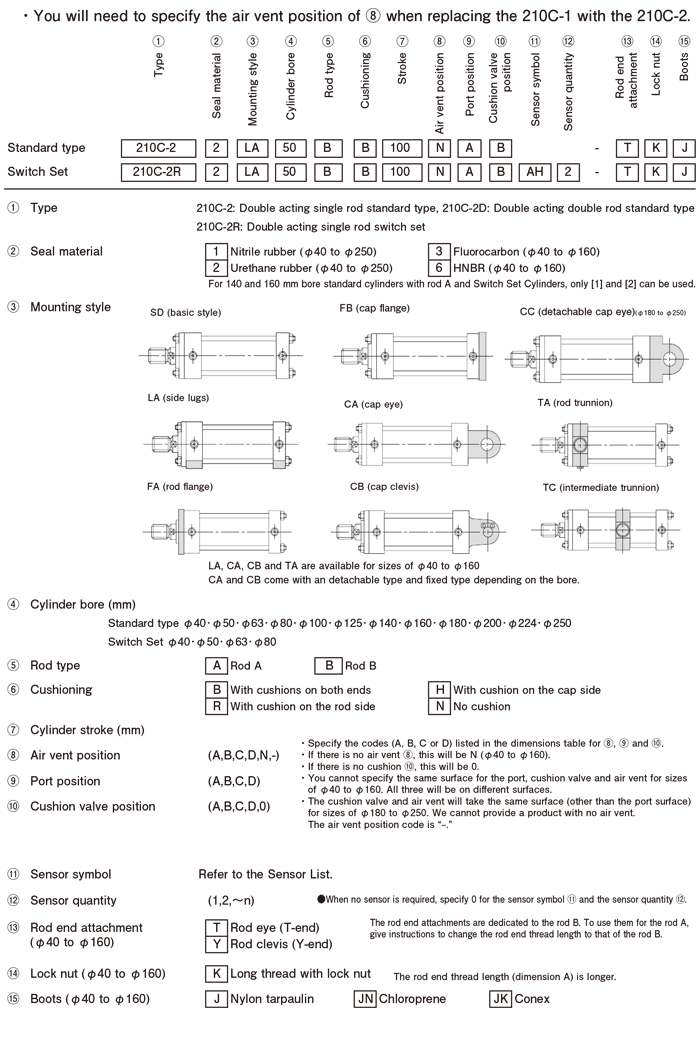

- In case that the lock nut is attached to the piston rod end thread part, increase the thread length (dimension A).
- Conex, material of the boots, is the registered trademark of Teijin Limited.
